Specialty Flanged Inline Heaters
High-temperature & high-pressure custom process heating solutions for precise and durable performance.
The growing demand for efficient engines, reduced emissions, and renewable energy has driven the need for advanced testing and research involving high-temperature, high-pressure gas streams. TUTCO SureHeat’s Specialty Flanged Inline (SFI) Heaters provide a reliable solution, offering safe, precise, and durable performance in demanding applications that require high temperatures, high pressures, and low flow rates. Designed to meet specific requirements, SFI heaters are fully customizable, ensuring they deliver tailored, effective heating solutions for your unique needs.
Please note, we do not sell products for any purpose connected with chemical, biological, or nuclear weapons; or missiles delivering such weapons.
The TUTCO Advantage
TUTCO SureHeat Specialty Flanged Inline (SFI) heaters offer superior performance over conventional sheathed (“tubular” or “immersion”) style heaters because they are designed specifically for air and inert gas applications, including hydrogen, CO2, steam, and syngas. Our patented SERPENTINE™ technology produces a very high power watt density creating a compact overall heater design. SFI heaters can be as much as 8-12X smaller than equivalent tubular/immersion designs. (see the diagram below) With this advantage, less space is required. With a faster heat-up and cool-down ramp time SFI electric air heaters are more cost effective to operate. Whether for a research test stand, factory production line, or key component in a product or thermal energy storage system, our Specialty Flanged Inline heater and controls are the right process heating solution for the job.
Key Features
- Designed for High Temperature Process Heat Applications using Air or Inert Gases, including hydrogen, CO2, steam, and syngas.
- Compact in Size and Weight Compared to Competitive Immersion Solutions
- Faster Temperature Ramp Rates are more Cost Effective to Operate
- Electric Control Panels Engineered Specifically for Each Application
Combustion Research • Fuel Cell • R&D • Pollution Control • Renewable Energy
TUTCO SureHeat understands the importance of producing custom heater solutions that deliver safe and superior trouble-free performance. Electric process inline air heaters have ANSI standard pipe and flanges for heating high-pressure air or inert gases to 1750°F (950°C) and higher. Our patented Serpentine™ elements allow you to reach temperature within a minute vs much slower response times of tubular element designs. Flanged Inline Air heaters use internal "K" type thermocouple sensors to measure temperature as various points - on the element, inlet and outlet. These are part of SureHeat's Over Temperature Protection (OTP). Coupled with an external limit control, OTP protects elements from premature failure if the airflow is reduced. It also protects against user error if the temperature is set to high. OTP allows our heaters to operate continuously for long periods of time without overheating.
Tutco SureHeat is focused on engineering customized solutions for demanding process heating applications
System Overview
An SFI System consists of an open element electric heater plus a control cabinet to ensure accurate temperature control and safe operation.
The Heater
An SFI heater consists of a metal housing and the heating element assembly installed inside the housing. The metal housing is a round pipe with flanges for connecting to the customer’s piping and fittings for the power supply feed-throughs and control instrumentation. It is custom engineered to meet the unique temperature, pressure, and mass flow rate requirements for the application. The diameter is determined by how large the heating element needs to be to meet the heat transfer demand while maintaining low pressure drop. Wall thickness, flange specifications, and material of construction are all established by ASME design principles for pressure vessels (Section VIII, Division 1).
The Control Cabinet
TUTCO provides custom control cabinets designed to work with our Serpentine elements and are guaranteed to work safely with our heater. Other control devices may not offer the responsiveness required to control Serpentine elements and are not guaranteed by TUTCO SureHeat. Control cabinets include a phase-angle fired SCR power controller, PID-Based digitial temperature controller, and a 4 input OTP limit circuit.
Heater Types
SFI-HP - High Pressure Models
High Pressure models are designed for use with high pressure air sources (> 50 psi, 3.5 Bar), and are constructed of heating elements aligned with the airflow. SFI-HP models can produce air/gas temperatures to 1652°F (900°C) or higher in custom designs.
SFI-LP Low Pressure Models
Low Pressure models are designed for use with low pressure air sources like regenerative blowers (< 50 psi, 3.5 Bar) and are constructed of low-restriction crossflow elements. SFI-LP models can produce air/gas temperatures to 1475°F (800°C).
Standard Design SFI Specifications
| Maximum Static Pressure | 600psi (41.37bar) |
| Maximum Inlet Temperature | 900°F (482°C) |
| Standard Outlet Temperatures | 1652°F (900°C) |
| Temperature Control | +/- 2°F (+/-1°C) |
| Ramp time | 50°C per second |
Custom Design SFI Specifications
| Maximum Static Pressure | 3000 PSI (207 Bar) |
| Maximum Inlet Temperature | 900°F (482°C) |
| Standard Outlet Temperatures | 1922°F (1050°C) |
| Temperature Control | +/- 2°F (+/-1°C) |
| Ramp time | 100°C per second |
| Maximum Power Rating | 1 MW and higher |
Combustion Research Today’s combustion researchers are working on designing and testing new combustor shapes and configurations to improve fuel efficiency, reduce noise, and minimize pollution. Central to these efforts is the redesign of the combustor within turbofan engines.
Get info
Aerospace Valve and Component Testing TUTCO SureHeat specialty flanged inline heaters are used by the aerospace industry for the testing of valves employed throughout aircrafts. OEM manufacturers use our heaters to simulate the high heat and high-pressure compressed air that powers critical applications through the aircraft.
Get info

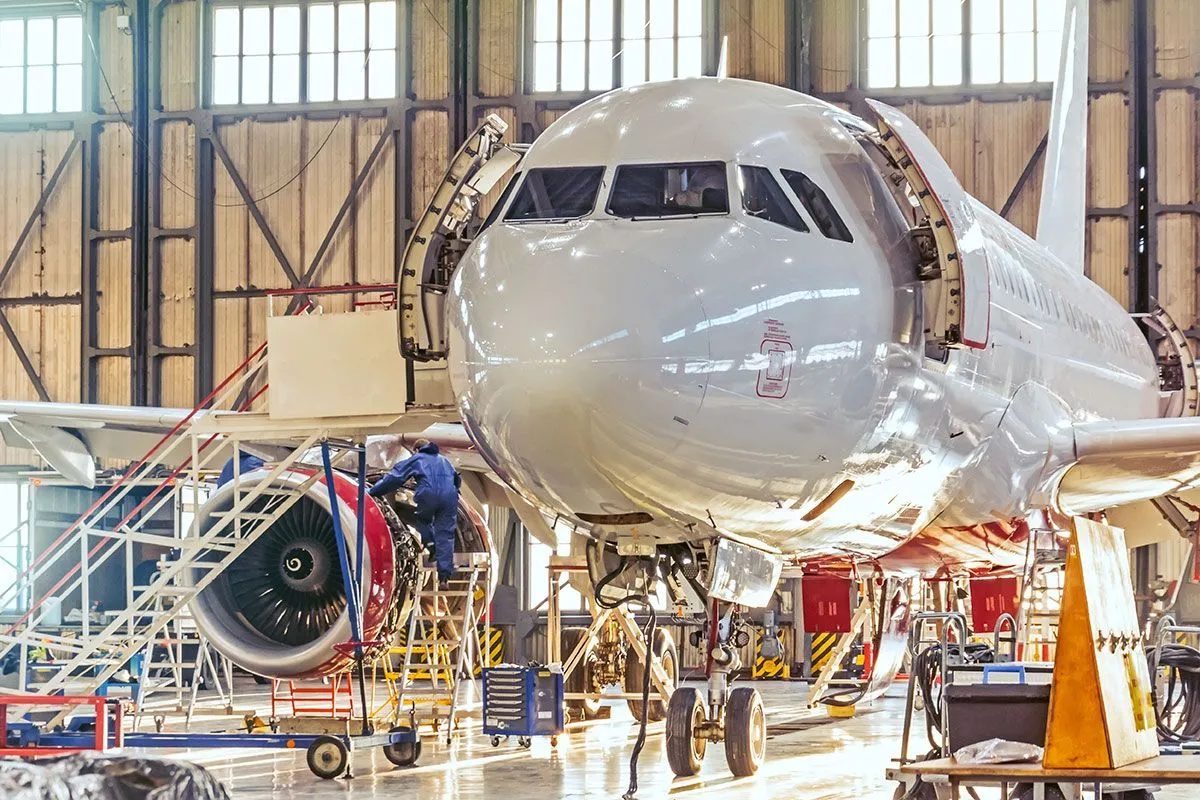

Maintenance Repair and Overhaul (MRO) TUTCO SureHeat specialty flanged inline heaters play a vital role in the maintenance, repair, and overhaul (MRO) operations conducted at FAA repair stations. Our heaters provide the high-temperature, high-pressure solutions essential for testing pneumatic aerospace components—a critical and precise application in the aerospace industry.
Get info
Wind Tunnel Tutco SureHeat designed and built two powerful electric air heaters that ramp from ambient to 600C in 10 seconds, replacing gas fired heaters in a wind tunnel application.
Get info
Electric Trim Heating We worked with the largest US manufacturer of turbo fan engines to build massively powerful electric air heaters for a Unit Under Test at a combustion research facility. This was part of a large scale facility upgrade that would span many years.
Get info
Solid Oxide Fuel Cells High-temperature solid oxide fuel cells (SOFCs) are a clean, eco-friendly technology designed to generate electricity with impressive efficiency. To function properly, these fuel cells need to operate at elevated temperatures, typically between 500°C and 800°C, and are often used in systems producing 120kW or less.
Get info
Cold Spray Reserach Tutco SureHeat specializes in designing and manufacturing heaters for cold spray research. These preheaters elevate the temperature of gases like nitrogen, helium, or gas mixtures to a precise target temperature under pressure.
Get info
Turbo Machinery TUTCO SureHeat’s SFI High-Temperature Air Heaters play a critical role in research and innovation, particularly within Turbo Machinery applications. These heaters are used to simulate turbo fan engine conditions by providing heated air to test components, validate designs, and optimize new, more efficient design concepts.
Get info
Thermal Energy Storage In the effort to develop sustainable energy solutions, electric heat emerges as a crucial component, driving innovation in energy storage applications. Our heating solutions enable the utilization of thermal energy storage (TES) systems, employing heat as a medium to store and release energy efficiently.
Get info
Higher heat-higher pressure SFI heaters Tutco SureHeat’s Specialty Flanged Inline (SFI) Heaters, which feature proprietary Serpentine™ Technology, deliver safe, precise, and durable performance in a wide range of extremely demanding process heat applications.
