Threaded Inline Air Heaters

Threaded in-line air heaters are designed for industrial process heating applications requiring high-heat and high air pressure. Serpentine™ heating elements are installed into a 304 stainless steel housing and threaded at both ends. TUTCO SureHeat offer two styles, Style “A” and Style “B” inline air heaters. Style “A” should be used when a leak-proof air system is required.

Threaded inline air heaters are commonly connected to filtered compressed air supply lines and rapidly heat air for precise temperature control inline with heated industrial processes.

fas fa-video fas fa-play-circle {{v.title}} Watch Videos
fas fa-wrench Show Options
Get A Quote fas fa-book SH_threadedinline-operating-manual_1.pdf fas fa-book SH_threadedinline-data-sheet.pdf fas fa-book SH_ht-threadedinline-data-sheet.pdf

Product Specs

  • {{item.key}}

Additional Info

Make sure to properly mount the TC coupling so that the TC is slightly above the ceramic rod running through the center of the Serpentine™ heating element. The open end of the TC should be in the heated air stream.

The inlet side of the heater is located closest to the power feed throughs. Installation orientation is critical. Positioning the heater in the wrong direction will cause damage. Like all Tutco SureHeat heaters, do not operate without the air on.

Diagrams

 diagram  diagram Dimensions and Mounting diagram  diagram  diagram

Compatible Heater Controls

Notes

  • Threaded In-line thermocouple adapter material is 316 stainless steel
  • Better resistance to oxidation at higher temperatures
  • Type K thermocouple F206119 sold separately
  • Use of other sensor types and mounting locations can result in heater damage
  • Thermocouple mounting depth location is critical. Follow all mounting instructions.
  • If replacing a Thermocouple, take note of the depth by measuring the distance to the compression fitting on the old Thermocouple.
  • UL recognized, CE, RoHS

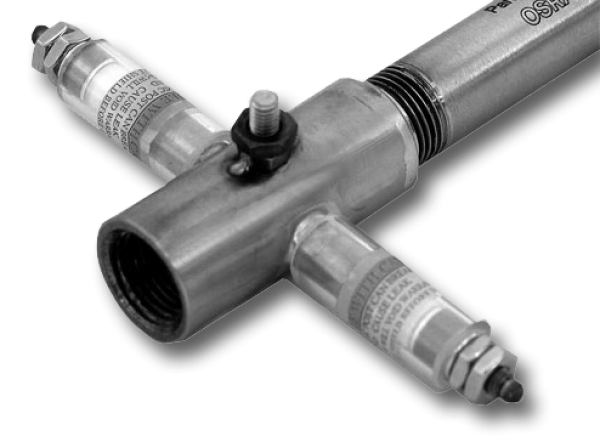

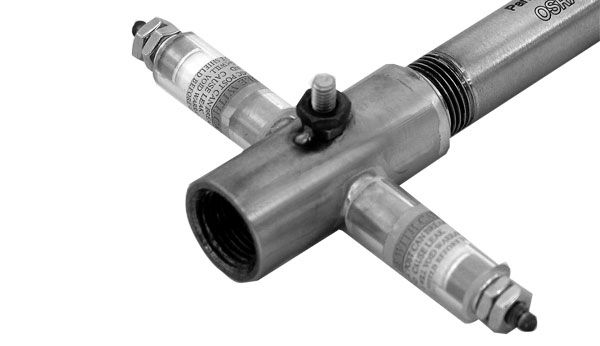

Style A

  • UL Recognized, CE, RoHS
  • High-pressure power feed-throughs
  • Leak-proof to 150 psi (10 bar)
  • Maximum inlet temperatures 900°F (482°C)
  • Torque Specification for Power Connections: 20 lb-in (2.26 N-m)

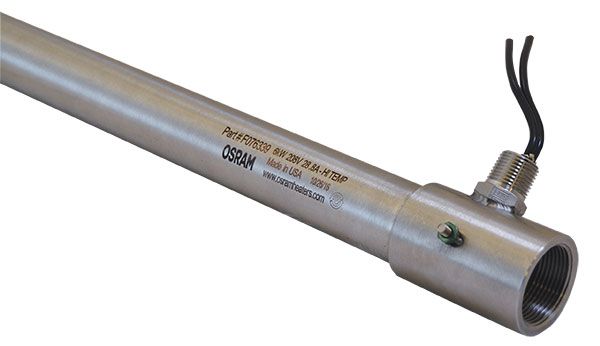

Style B

  • UL Recognized, CE, RoHS
  • 12” (305mm) wire power leads
  • Not recommended for leak-proof systems due to slight leakage through wire and jacket
  • Maximum inlet temperatures 200°F (93°C)

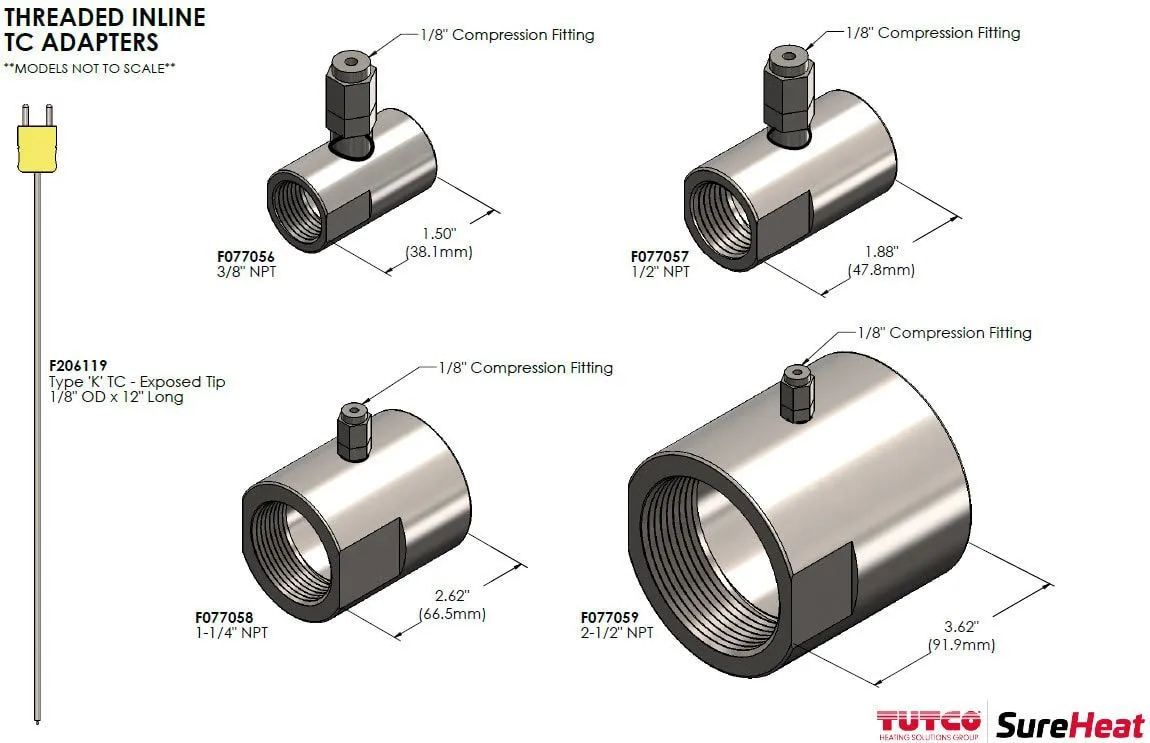

Thermo Couple Adapters

Part Number
Description
F077056
TC Adapter 3/8” Threaded In-line
F077057
TC Adapter 1/2” Threaded In-line
F077058
TC Adapter 1-1/4” Threaded In-line
F077059
TC Adapter 2-1/2” Threaded In-line
F206119
1/8” TC Type K 12” Probe

Maximum Performance Curves

Threaded Inline Performance Curve

Element Life
